FLIPSKY FT85BD Dual ESC 84V 200A Aluminum Case Non-VESC Speed Controller for Electric Skateboard, Scooter, Ebike, Motorcycle & Robotics - Perfect for DIY Electric Vehicle Projects and High-Power Motor Control

Product Description

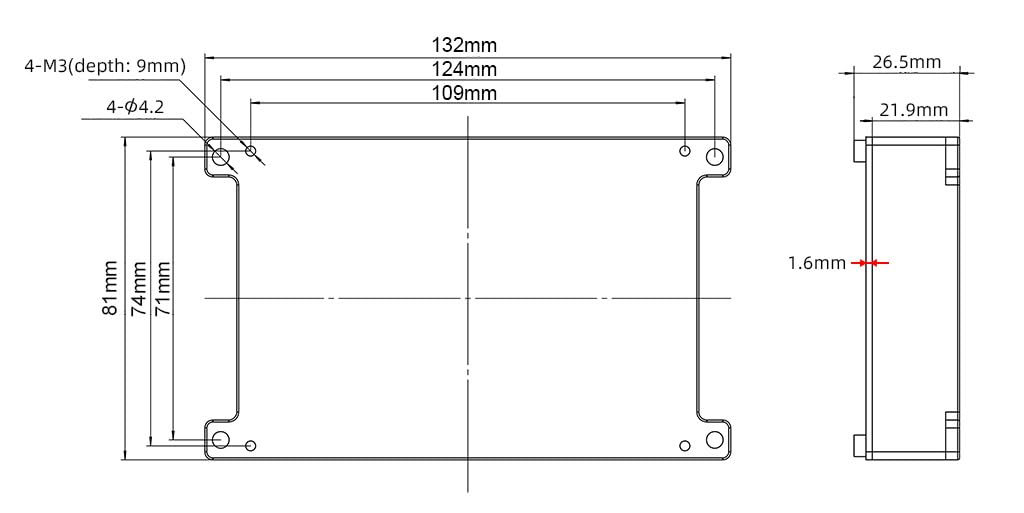

Note: USB cable black or white will be shipped randomly.Specifications : Firmware: V1.2 (firmware update via Flipsky ESC Tool supported)Voltage: 14-84V (safe for 4S-20S)Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)Peak Current: 250A / Single; 500A / DualCommunication Ports: USB, CAN, UART, PPM, ADCInput Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present)Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored)BEC: 5V@1AMultiple Speed Gear levels: Low, Medium, High, ReverseFront Lights, Rear Brake Lights & Horn: SupportProgrammable: YesRegenerative Capacity: YesSlide Poweron & Auto shutdown: YesSelf-resetting switch with green LED button Diameter: 16mmPower Wire Size: 10AWG; Motor Wire Size: 12 AWGSize: L132*W81*H26.5mm(Including Alu. Case)Features:1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.2.240MHz and the max PWM switching frequency 45KHz improves the motor RPM.3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.4.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).5.Supporting motor FOC with low working noise and smooth starting.6.Supporting Real-time data and fault alerts.7.Supporting adaptive variable PWM frequency control.8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).9.Supporting control types: Current, Duty Cycle10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.11.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.12.Supporting extra interface like front lights, rear brake lights and horn fixtures.
